Hypertec R19 Server Rack 42RU 600W 900D 2055H inc Fixed Shelves And PDU

Freight by quote only on large racks

🚚 Freight by Quote Only on Large Racks

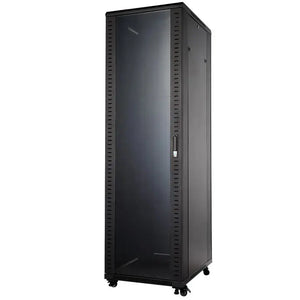

🖥️ Hypertec S-Series 42RU 600W x 900D Server Rack

The Hypertec S-Series 19" Floor Mount Server Rack is designed for easy installation, reliable performance, and simplified maintenance. Built from high-quality cold rolled steel, it offers strength without excess weight—ideal for securing your IT infrastructure.

🏗️ Build & Materials

• SPCC cold rolled steel: Rails 2.0mm, Frame/Doors 1.2mm, Side Panels 1.0mm
• Black powder coat finish (RAL 9005)
• Max Load: 800kg

🔍 Doors & Panels

• Front Door: 5mm tempered glass, quick-release hinges, earth lead
• Optional: Perforated metal door
• Rear Doors: Bi-fold, perforated for airflow, quick-release hinges
• Side Panels: Removable with keyed cam locks

📏 Rails & Mounting

• RU markings front and rear
• Adjustable rails
• Compatible with horizontal & vertical accessories

🔌 Cable Management

• Top: Front/rear cable access
• Bottom: 5 removable entry plates
• 120mm clearance for cable routing
• Built-in vertical cable management (800mm wide models)

🌬️ Cooling

• Fan box included (top-mounted)
  • 4 fans for 900mm depth
• Perforated rear doors for passive airflow

⚡ Power Distribution

• 6-way 10A horizontal PDU
• Australian 3-pin plug/sockets
• Optional PDU upgrades available

🚚 Transport & Setup

• Shipped pallet-mounted with quick-release brackets
• 4 castors (2 with brakes) + 4 adjustable levelling feet

📊 Technical Specs

✅ Highlights

• 🔧 Tool-less access side panels
• 🛡️ Durable yet lightweight steel frame
• 🌐 Optimized airflow & cable routing
• 🔌 Fan box & PDU included
• 🧱 Modular design with accessory support

📐 Standards & Inclusions

• IP20 rated, fully assembled
• Includes: Power rail, fan, fixed shelves, cage nuts
• Standards: ANSI-310-D, IEC 297-2, DIN 41491/41494
