Hypertec R19 Server Rack 18RU 600W 600D 988H inc Fixed Shelves And PDU

🚚 Freight by Quote Only on Large Racks

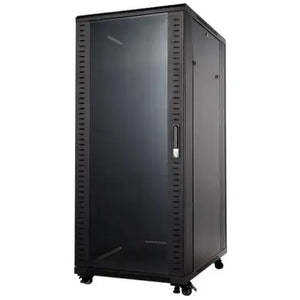

🖥️ Hypertec S-Series 18RU Floor Mount Server Rack – 600W x 600D x 988H mm

Compact, durable, and installer-friendly – ideal for small to mid-sized IT infrastructure setups.

🔧 Build & Materials

• SPCC Cold Rolled Steel:
  • Rails: 2.0mm
  • Frame/Doors: 1.2mm
  • Side Panels: 1.0mm
• Black powder coat finish (RAL 9005)
• Max Load Capacity: 800kg

🚪 Doors & Panels

• Front Door: 5mm tempered glass, quick-release hinges, earth lead
• Optional: Perforated metal door
• Rear Doors: Bi-fold perforated, quick-release hinges
• Side Panels: Removable with keyed cam locks

📏 Rails & Mounting

• RU markings (front & rear)
• Adjustable rails
• Compatible with horizontal & vertical accessories

🔌 Cable Management

• Top: Front/rear cable access
• Bottom: 5 removable entry plates
• 120mm clearance for cable routing

🌬️ Cooling

• Top-mounted fan box included
• 2 fans for 600mm depth
• Perforated rear doors for passive airflow

⚡ Power Distribution

• 6-way 10A horizontal PDU
• Australian 3-pin plug/sockets
• Optional PDU upgrades available

🚚 Transport & Setup

• Shipped pallet-mounted with quick-release brackets
• 4 castors (2 with brakes) + 4 adjustable levelling feet

📊 Technical Specs

✅ Highlights

• Tool-less access side panels
• Durable yet lightweight steel frame
• Optimized airflow & cable routing
• Fan box & PDU included
• Modular design with accessory support

📐 Standards & Inclusions

• IP20 rated
• Fully assembled
• Includes: Power rail, fan, fixed shelves, cage nuts
• Standards: ANSI-310-D, IEC 297-2, DIN 41491/41494
