Right‑Angle DIN Rail Mounting Plate — Perpendicular DIN Rail Adapter (195 × 95 × 35mm)

🔧 Save DIN Rail Space | 📐 Perpendicular Mounting | 🛡️ FR4 + Aluminium Construction | ⚡ Includes 35mm DIN Rail

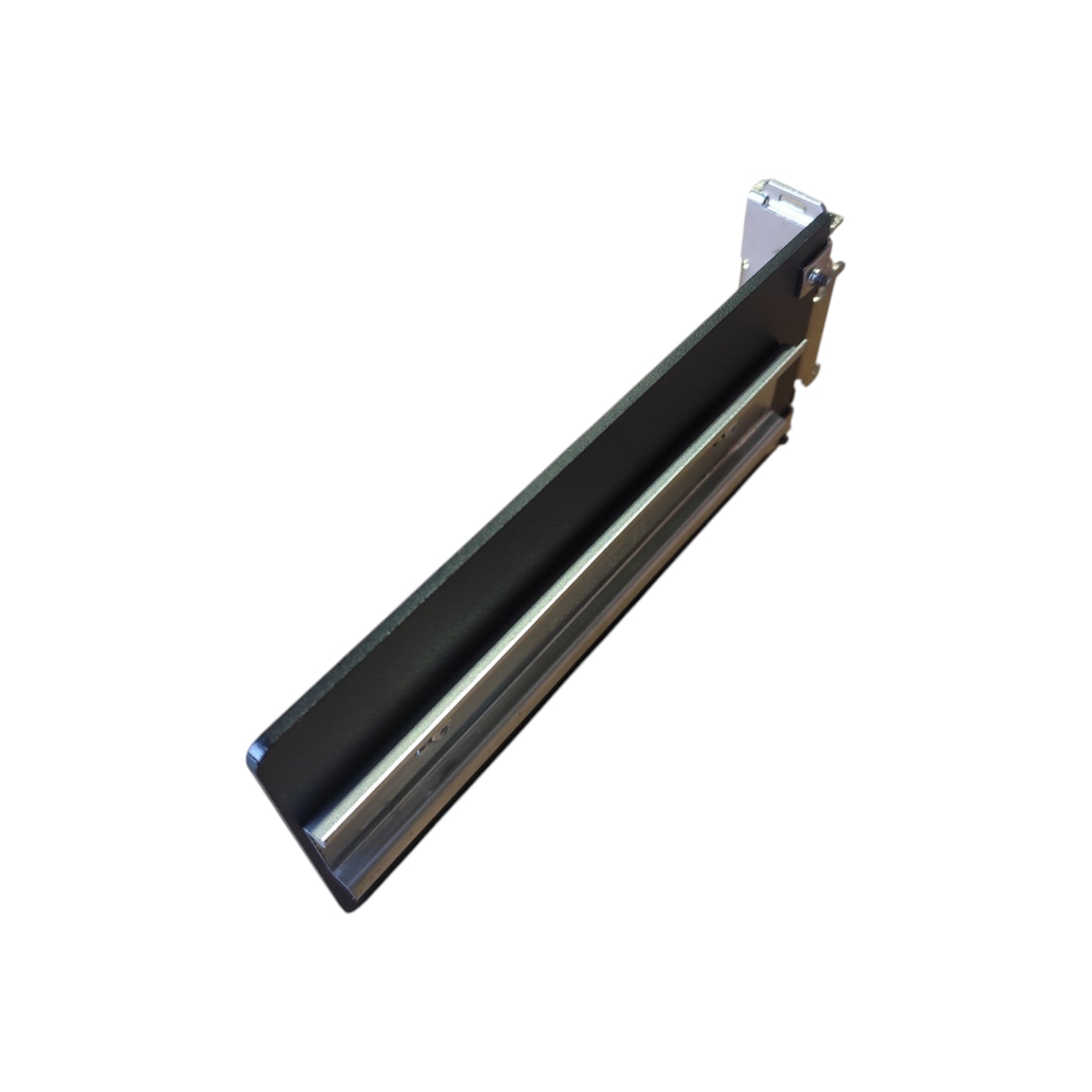

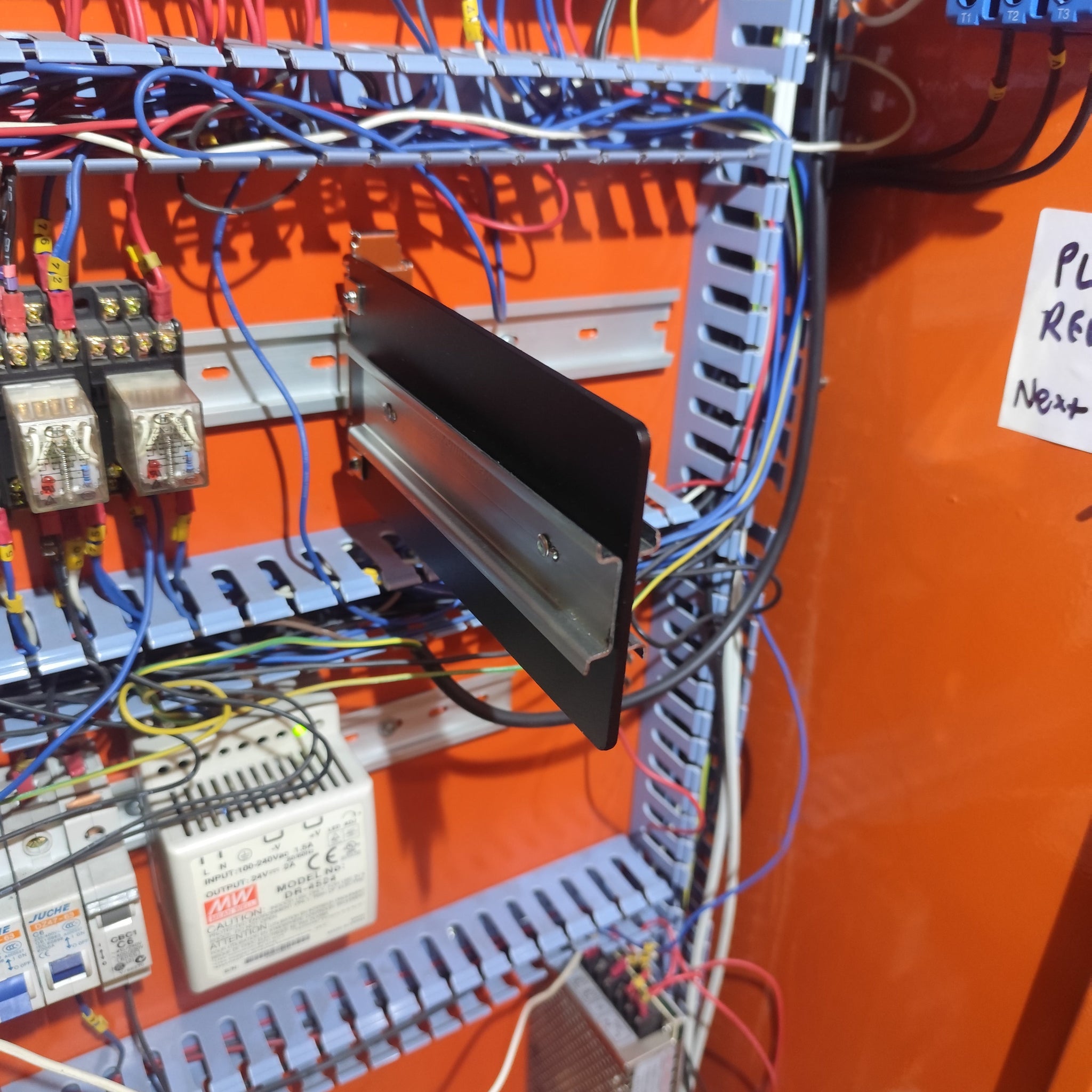

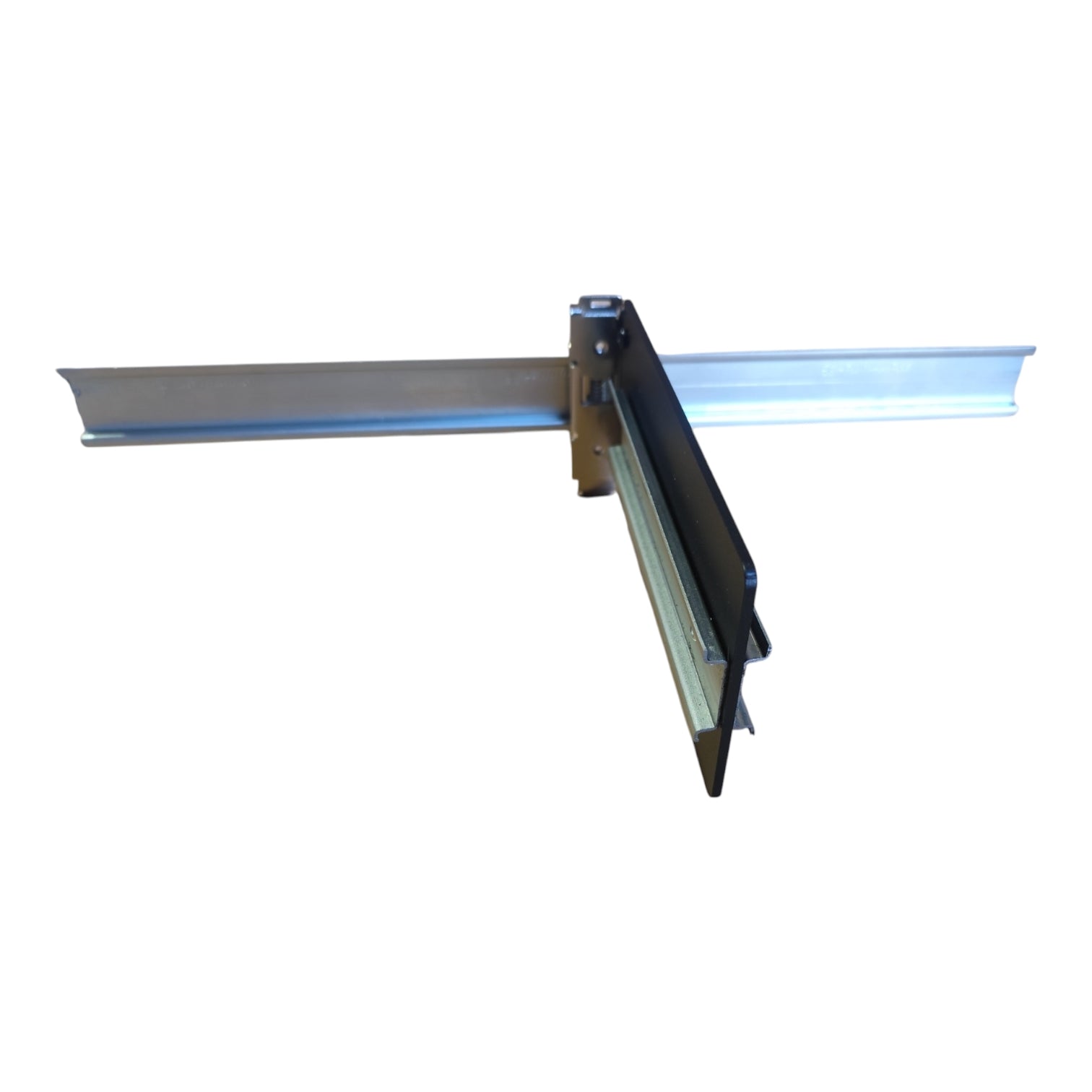

The MACARAC Right‑Angle DIN Rail Mounting Plate allows you to mount DIN‑rail devices perpendicular to your existing DIN rail, instantly increasing usable space inside your cabinet. By utilising cabinet depth instead of horizontal rail length, you can fit more controllers, breakout boards, relays and automation modules in the same enclosure.

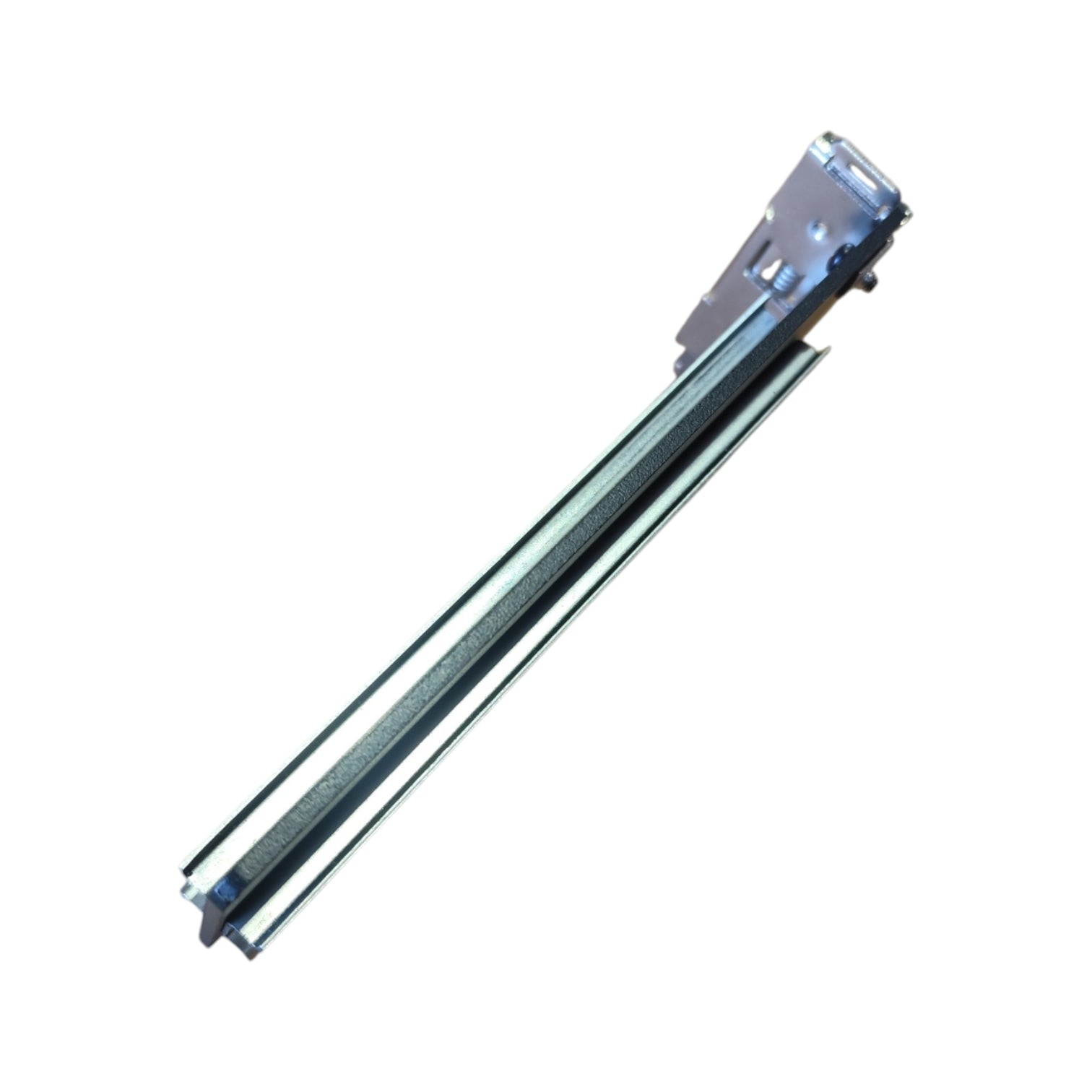

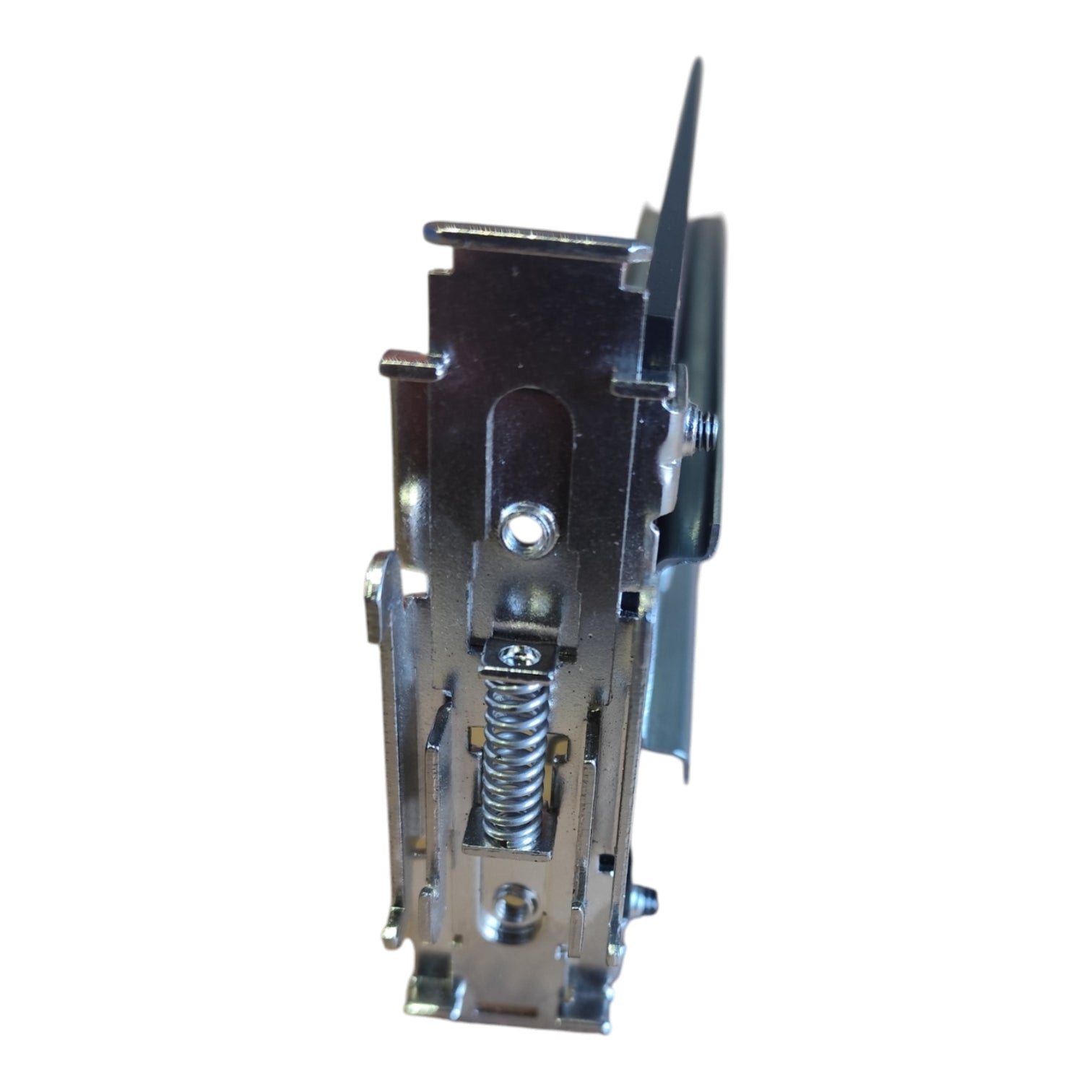

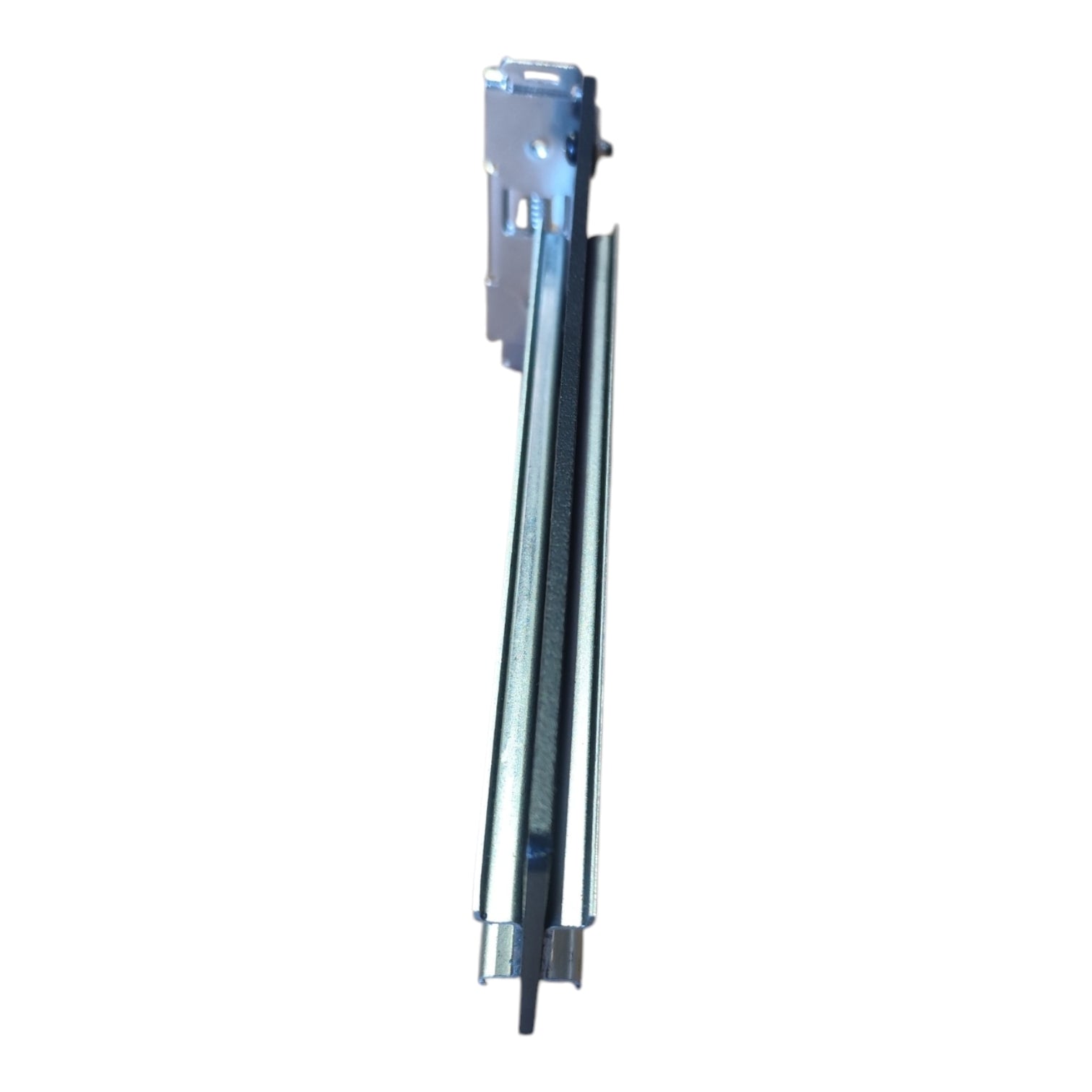

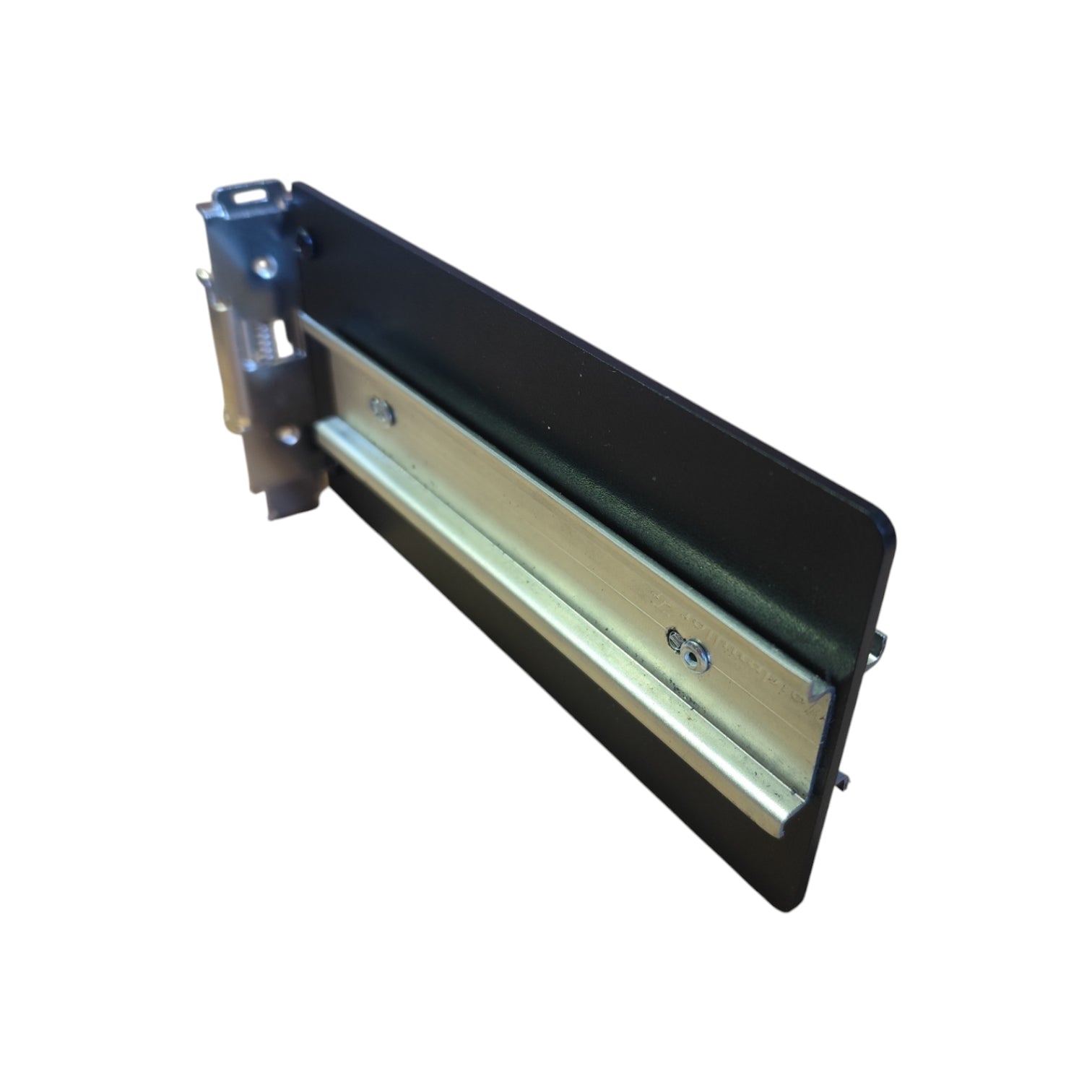

This adapter plate comes pre‑assembled with a standard 35mm WEIDMÜLLER‑style DIN rail, allowing you to simply snap your devices on and mount the entire assembly onto your existing DIN rail. A heavy‑duty steel DIN rail bracket (part# DINM30) is factory‑installed for secure, vibration‑resistant mounting.

Available in single‑sided or dual‑sided configurations (DIN rail on front and back), this plate is ideal for dense automation cabinets, industrial control panels, and compact electrical enclosures.

🔥 Key Features

• 🔧 Perpendicular Mounting — saves horizontal DIN rail space by using cabinet depth

• ⚡ Includes 35mm DIN Rail — WEIDMÜLLER‑style rail pre‑installed on the plate

• 🛡️ Sturdy FR4 + Aluminium Construction — rigid, durable and powder‑coated

• 🔩 DINM30 Steel Bracket Included — secure mounting to any existing DIN rail

• 🔁 Optional Dual‑Rail Version — DIN rail installed on both front and back

• 🎛️ Universal Compatibility — fits controllers, breakout boards, relays and more

• 🧰 Ideal for Dense Cabinets — maximise space in automation and electrical enclosures

📐 Specifications

• Dimensions: 195mm (L) × 95mm (H) × 35mm (W)

• rail length 163mm

• Material:3mm Powder‑Coated Aluminium

• DIN Rail: 35mm standard (WEIDMÜLLER style)

• Bracket: Steel DINM30

• Mounting: Snaps onto existing DIN rail

• Colour: Textura Black

• Configuration Options: Single‑sided or dual‑sided DIN rail

• Brand: Macarac

🧩 Common Applications

• Industrial automation cabinets

• PLC and controller mounting

• Breakout boards and relay modules

• Electrical distribution enclosures

• Compact control panels

• Dense multi‑device DIN rail layouts

🛠️ Also Known As

• DIN Rail Adapter Plate

• Right‑Angle DIN Mount

• DIN Rail Bracket

• DIN Rail Extender

• Universal DIN Mounting Plate
